ADENSYS strives to be the highest quality after-market manufacturer for dental parts worldwide. This means delivering products that have consistently high performance and consistently long life in service.

dan

Technical Properties

Although we fulfill all of the ISO-stipulated requirements listed above, we go above and beyond whenever possible. Specifically, this means that our cartridge products have technical properties that match or exceed the properties you’d find from the original equipment manufacturer.

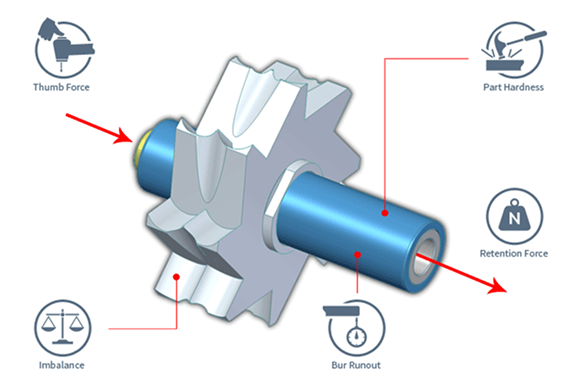

High Retention Force – ensures safety for patients and long spindle lifetime

Force required to extract the bur from the chuck
>30N

Low Thumb Force – makes for easy operation

Force required to open the chuck mechanism using the push button
25N – 30N

High Part Hardness – increase bearing and chuck lifetime

The hardness of all parts including axis, on which the bearings are mounted
60-65 HRC

Low Bur Runout – increases bearing lifetime and improves precision operation of handpiece

The radial deviation of a bur, from completely concentric, when turned measured 6cm from the end of the rotor‘s axis part
< 0.015mm

Low Imbalance – reduced handpiece noise and increase rotor lifetime

The amount of rotor imbalance , expressed as a mass at a certain distance from the center of rotation
< 0.2mgmm

Traceability Through Serial Number

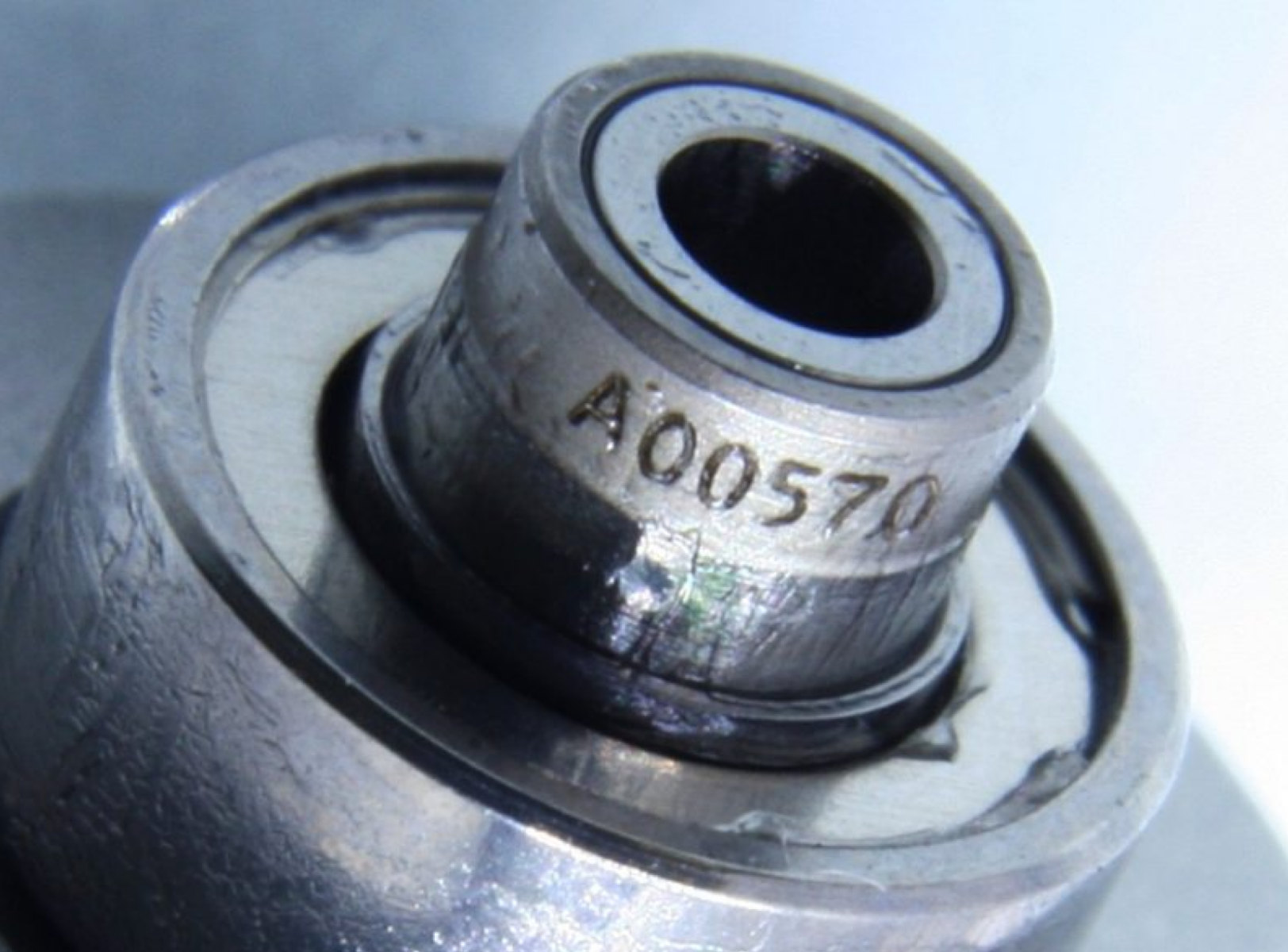

ADENSYS_laser_marking_2All rotor products are delivered with a unique serial number (at the front of the spindle), which allows for smoother management of guarantee claims and allows for full traceability if any quality issues arise in the market. Measured technical properties for each rotor are recorded and archived by ADENSYS.

ISO Compliance

In order to fulfill the vision spelled out in our quality philosophy, we have to ensure that we deliver the top technical characteristics for all ADENSYS products. In the case of our rotor assemblies, this means that absolutely all requirements of globally recognized standards are respected. Our rotors fulfill the requirements for the following ISO norms:

ISO 7785-1 & 7785-2
Technical Requirements for air- and motor-driven dental handpieces
ISO 1797
Specifications for the burs and mandrels that are used with dental handpieces
ISO 9687
Description of the graphical symbols to be used for dental equipment
ISO 13060
Process description for sterilization of medical devices
ISO 14457
The norm for dental hand pieces and motors, which replaced ISO 7785 and ISO 13294

Guarantee

All ADENSYS products come with a guarantee against material defects and workmanship. Cartridges are covered by a 6 month guarantee*, combos are covered by a 12 month guarantee and all spare parts are covered by a 4 month guarantee.

In order to claim guarantees, we require that the defective/damaged parts be returned to us with a copy of the original invoice. Please note that this guarantee will not cover any claims that results from misuse, improper assembly, improper maintenance, as per the instructions issued by the original equipment manufacturer. For more information on our guarantee policy, please our terms and conditions.

* Cartridge guarantee times are generally lower because of the possibility for improper handpiece maintenance.
